Rowridge transmitter

Note, due to the new phenomenon of MUXICAL chairs you may experience problems with certain MUXES disappearing. First try rescanning your TV / set top box, do it manually if possible. If this fails to sort it check on transmitter work or call the reception advice phone numbers.
Also see basic digital fault finding,
and the wrong aerial for Rowridge

700MHz clearance occurred at Rowridge in Spring 2018, nothing changed apart from the "temporary" MUXES 7 & 8 (see graph). Those with A group aerials who want those MUXES will either need to change their aerial for a wideband (but which has less gain), or add another aerial (e.g. a Yagi 18E) using a CH38 diplexer as a combiner (see this article).

Rowridge transmitter thumbnail 201H L5 6kB

Rowridge transmitter page jump links :

Digital power output, aerial group and polarisation of Rowridge transmitter
Our TV aerial recommendations for Rowridge
The wrong aerial for Rowridge
Rowridge’s graph (its transmissions v our aerial recommendations)
Rowridge’s channels/frequencies (including alternative transmitters)

Also see :
How to combat continental co-channel interference
Details of French transmitters relevant to Rowridge transmitter

Rowridge transmitter began VHF TV transmissions in 1954 although this was from a shorter temporary tower, the (taller) stayed mast of 150m was constructed in 1956 (how high is high ?). UHF broadcasting started in 1966 for BBC2, BBC1 and ITV were added in 1969. In order to accommodate all the additional transmitters required for the digital switchover etc a second mast (187m high) was put up in 2010 because the older structure was not deemed strong enough to carry all the new digital transmission antennas. The two masts existed together until 2015, the original mast being dismantled in the summer of the latter year. The transmitter is situated 3 miles SW of Newport on the Isle of Wight, that’s about 15 miles South of Southampton.

Rowridge transmitters population coverage is around 1.75 million and its broadcasts can be picked up in many areas along the South Coast including Portsmouth, Southampton, Bournemouth, Fareham and Weymouth.

Rowridge transmitter's channels

For the most up to date MUX to channel allocations etc put this postcode PO30 4HT into the Freeview checker.
Also see Meridian region Freeview transmitters.

Rowridge Transmitter : horizontal polarity channels & powers

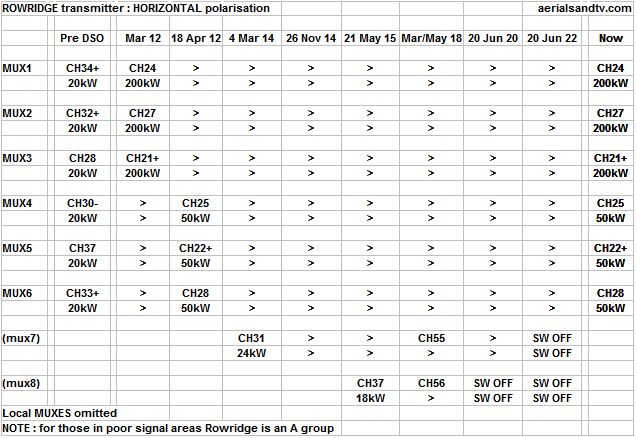

Rowridge transmitter powers and channels (HORIZONTAL polarity) from Mar 18 75% L10 kB

Rowridge Transmitter : vertical polarity channels & powers

Rowridge transmitter powers VERTICAL polarity Mar 18 85% 420W L5 kB

Rowridge is an A group transmitter (excluding MUXES 7 & 8).
Rowridge transmits all its digital output in both horizontal and vertical polarity. Rowridge is the only main transmitter to do this (the other dual polarity transmitters are all relays) and it is to help alleviate co-channel interference with the continent. If you get interference with a horizontally polarised aerial you have the option to go vertical which may decrease the co-channel. Whether HP or VP is preferable will depend very much on where you live. Some sources recommend vertical polarity for all installs though I’m not sure I do (and you won’t get MUX 7 or 8 on vertical unless you’re in a strong signal area). Personally I’d try horizontal first then vertical if you’re having problems, remember that polar plots of aerials are tighter when they’re horizontally polarised. Having said that if you receive your signals from Rowridge over a significant body of sea water and suffer from “tide fade” you may be better off trying vertical polarity first.
All 6 MUXES are transmitted at 200kW on vertical, but on horizontal only the first 3 (the PSBs) are at this power, MUXES 4 to 6 are "only" 50kW (this is to avoid co-channel on these 3 MUXES with Crystal Palace), though this is still pretty high power, remember that they were transmitted at 20kW pre DSO !
On the other hand MUXES 7 & 8 are lower power (24kW and 18kW) and are only transmitted on horizontal polarity, though they are due to be switched off between 2020 and 2022 anyway.

Rowridge is a very powerful transmitter, in fact it is the joint most powerful in the country for its vertically polarised output (4th most powerful for its horizontal output). In addition it has just over thirty smaller repeaters to increase its signal coverage. Ofcom report that, unsurprisingly, Rowridge doesn’t transmit to the South !

Those situated to the North or NW of Rowridge may find that during certain weather condition they can suffer from co-channel interference as their aerials are pointing towards the continent.

For Rowridge we recommend the DM log for strong signal areas, the Log36 or Yagi 18K for medium signal areas, the Yagi18A* for outside installs in poor signal areas, the XB10A* for loft installations in poor signal areas, and the XB16A* for those with the most marginal signals. Unless you have a massive loft we’d normally recommend the XB10A over the XB16A for a loft install due the smaller size of the former aerial. The dimensions and test performance of the aerials can be found on the relevant buy pages.

* The A group aerials will not pick up the "temporary" MUXES 7 & 8, if you particularly want to receive those MUXES we still recommend the DM log for strong signal areas and the Log36 or Yagi18K for medium signal areas, but for weak areas we’d recommend the DY14WB, though you will lose gain on the 6 main MUXES compared to an A group aerial. Alternatively, diplex a Yagi 18E with your existing A group aerial (using a CH38 diplexer) to get high gain across the whole band.

See this article about diplexing an A and E grp aerial to get MUXES 7 & 8.

See this customer aerial report, and the wrong aerial for Rowridge.

External Links

Rowridge Page at MB21
Rowridge Page at The Big Tower
Rowridge Page on Wikipedia

Rowridge transmitter Jul 15 text 601W L5 52KB

Pictures of Rowridge taken in July 2015 during operations to dismantle the older mast. The latter is on the right and had been up since 1956. The newer left hand mast was constructed in 2010. NOTE there is only one mast on that site now, though Chillerton Down radio mast isn’t that far away so from some angles (and a fair way away) it may look like there are still two !

The close up on the left of the flying jib arrangement used to dismantle (and also, in fact, to construct) masts. See an excellent article on mast construction on the MB21 site.

Rowridge transmitter flying jib 401H L1
David Foords picture of Rowridge transmitter 650W L2 84Kb

An exceptional picture of Rowridge (when there were temporarily two masts) by David Foord at The Big Tower. Note the mainland just visible behind the base of the mast(s).

These are the wrong aerials for Rowridge

Wrong aerials for Rowridge, but also any other A group transmitter
(Excluding the esoteric, and "temporary", MUXES 7 & 8) : see Rowridge graph.

Wrong aerial for Rowridge transmitter (or any A group transmitter) 536W L5

Both these aerials were spotted in Purley On Thames, just west of Reading, and they’re both on Crystal Palace transmitter but this article is just as relevant to Rowridge (or any A group transmitter). The thing is, theses are the wrong aerials for Crystal Palace, or any A group transmitter come to that. I’m not familiar with the signal strength in this location (though the one on the left was on a bleedin’ high pole....) but whether it’s a strong or weak area the installer has still fitted the wrong aerial.
Why ?
Well if it’s a weak reception area an A group aerial should have been used.
On the other hand if it’s a strong or medium reception area he should have fitted a Log Periodic aerial.
Let’s assume it’s a weak area. I estimate that over the Crystal Palace frequencies the aerial on the left would average about 1.5dB more than a DM Log and the one on the right about 2.0dB more. But if you’re short of signal a Yagi18A would give about 4.7dB more, and an XB16A about 6.5dB more. We had a customer who was shielded from Crystal Palace transmitter by the Arsenal football stadium. He originally had a DAT75 (a large wideband Tri boom aerial) but his pictures were very poor, so he swapped to an XB16A and reported that whilst his signal wasn’t perfect it was much better, “we can actually watch TV now” was his exact comment !  QED #1

Now don’t get me wrong, I’m not saying these wideband aerials aren’t working for these particular installations. Let’s be honest, if it’s a decent signal area they’ll work fine. But the fact is that on Crystal Palace there would be a minimal performance difference between one of these huge wideband aerials and a Log36 or Yagi18K. They perform just as well (in the A group) as any wideband Tri Boom antenna, yet have much less wind loading and are still (effectively) widebands. The 18K would also be better made than any Tri Boom I've ever seen. QED #2

The thing is a Log36 or 18K are smaller than a Tri Boom so some installers find it harder to justify their (large ? ) bills..... Any connection ? Or am I just getting cynical as I get older ?

In my opinion if any installer tries to sell you this type of Tri Boom aerial for Crystal Palace (or any other A group transmitter) you can quote me that he’s fitting the wrong antenna.

Although I think Tri Booms are over rated (see this test of a Tri Boom aerial) it’s possibly a little unfair to pick on them because all of the comments in this article apply (to a large extent) to any wideband Yagi type aerial, whether X Beam or not.
But all Tri Booms are wideband so at least I can be sure what I’ve photographed !

See this customer aerial report.

Rowridge transmitter graph of its transmissions v the gain curves of the aerials we recommend for it

Rowridge transmitter graph, channels to aerial gain curves L5 PNG

The dotted lines are the "temporary" MUXES 7 & 8.

Rowridge transmitter’s channels in relation to the TV band and the gain of the aerials we recommend for it :
DM Log    Log36    Yagi 18K    Yagi18A*    XB10A*    XB16A*

Also see other relevant A group curves.

* If you particularly want the "temporary" MUXES 7 & 8 then we recommend the DM Log, the Log36, the Yagi 18K or the DY14WB.

Rowridge transmitter channel allocation guide

For the most up to date MUX to channel allocations etc put this postcode PO30 4HT into the Freeview checker.
Also see Meridian region Freeview transmitters.

This channel allocation guide for Rowridge (horizontal polarity) also includes the same information for other potentially co-receivable TXs within the Rowridge coverage area, namely Midhurst, Heathfield, Crystal Palace, Whitehawk Hill (Brighton), Guildford, Hannington, Mendip, Oxford, Salisbury, Stockland Hill and Beacon Hill. The channel allocation guides can be very useful in the diagnosis of co-channel interference problems and can also be invaluable if you are trying to find a spare channel for a modulated output (e.g. for a Sky box or CCTV system) to be added to your TV setup/distribution system without suffering from co-channel.
Also check Rowridge’s thirty four smaller relays and the French Transmitters.
The frequencies given are for (most) digital MUXES, for analogue channels deduct 3MHz.
Table is correct Jul 18 on.

It is not unknown for those on Rowridge to suffer co-channel interference from the continent particularly during periods of high pressure (this was the reason that the transmitter was made dual polarity at switchover). If you live to the north or NW of the transmitter your aerial is also pointing at France ! See how to combat co-channel interference.

Rowridge and co-receivable transmitters digital Freeview channels Oct 19 on 75% L20 667W 83kB
