Useful information on installing a STARLINK satellite internet dish on a longer pole
This page is purely about the installing of a Starlink dish, particularly installing it on to a longer pole and/or avoiding the use of its "sprung pins". It is not about the system's technical specifications or effectiveness and we do not sell the Starlink system. However, we do stock an extensive range of components to install Starlinks and we can ship many of them worldwide (though there is always a carriage surcharge for non UK orders).
Installing your own Starlink really is pretty easy, it is easier than installing a conventional satellite dish, or even a TV aerial, because the Starlink dish aligns itself !
Subject list :
- Field of view required for Starlink
- Dimensions of Starlink Mk II dish & pole
- - Dimensions of Starlink "High Performance" dish & pole
- Starlink pole adapter mount for longer poles
- - The superior alternative to the Starlink pole adapter
- Pole & brackets recommendations for Starlink
- Mounting Starlink on a flat roof
- Size of hole needed for Starlink cable
- Lightning and Starlink

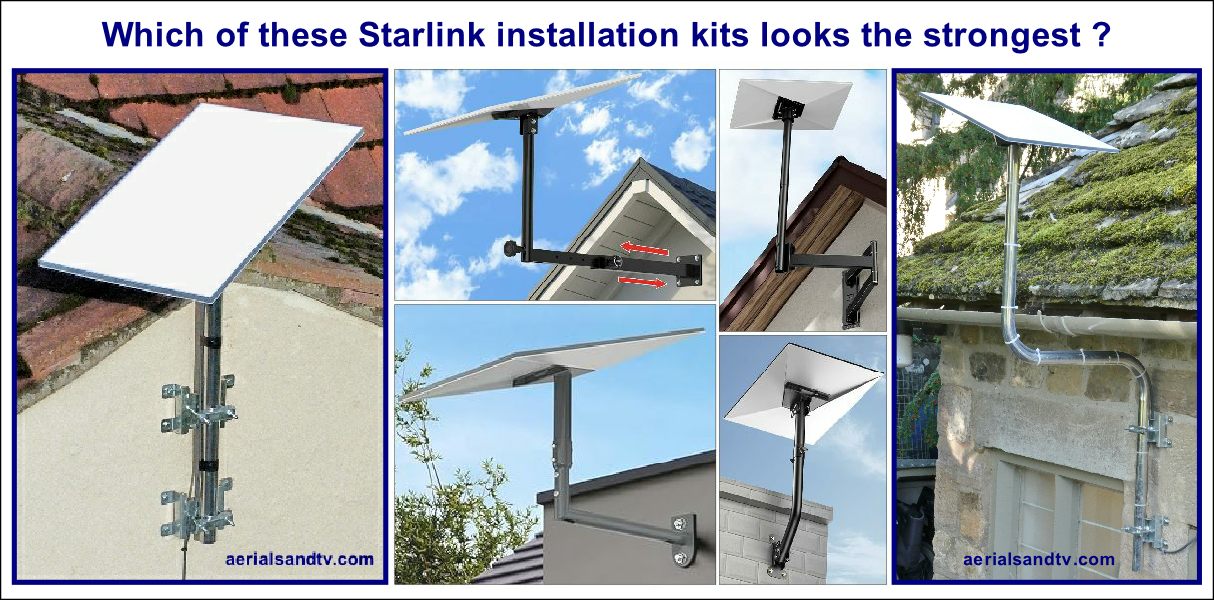

- Starlink installation kits
- 1.5" pole coupler (fits Starlink)
Also see :

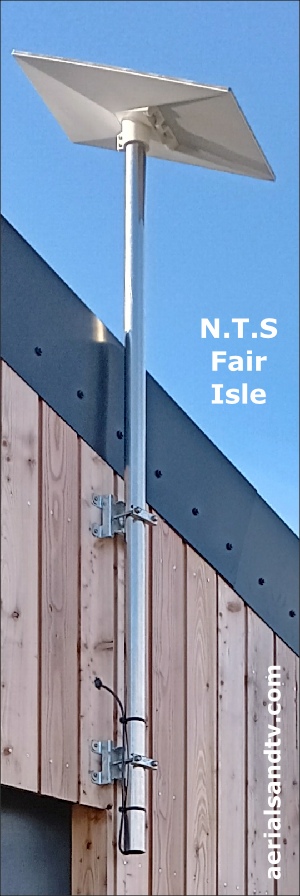

- Customers' Starlink installations
- Inside a Starlink dish (external link)
Starlink required field of view of the sky /siting your Starlink
Starlink requires a 100 degree cone unobstructed view of the sky. This figure should improve (i.e. the requirement may well drop to less than 100 degrees) as more satellites are put into orbit. Apparently Starlink do an "app" to check this but we have had reports it is "unreliable and doesn't give repeatable results".
To be frank it's not exactly difficult to check is it? If you haven't already got one I'd just buy a protractor... A refinement is to take a photo of the potential site (for the Starlink install) from as high as possible and/or as far away as possible, then use that to check out the angles and dimensions. The latter by taking relative measurements to something of known size (e.g. a window) in the picture at approx the same distance from the camera as the proposed installation.
Starlink recommend installing the dish in the highest elevation possible consistent with safety, but not neglecting the rigidity of the install as one should be aiming for minimum movement in the mounting. Longer poles have more flex in them, though that can be countered by using masts of increased diameter and/or wall thickness (see pole tests), or using guy wires. It makes sense to try and install Starlink in a sheltered spot if possible, but that may be incompatible with getting the required unobstructed view of the sky! Just like aerials and satellites generally we recommend keeping Starlink out of any smoke as far as possible.

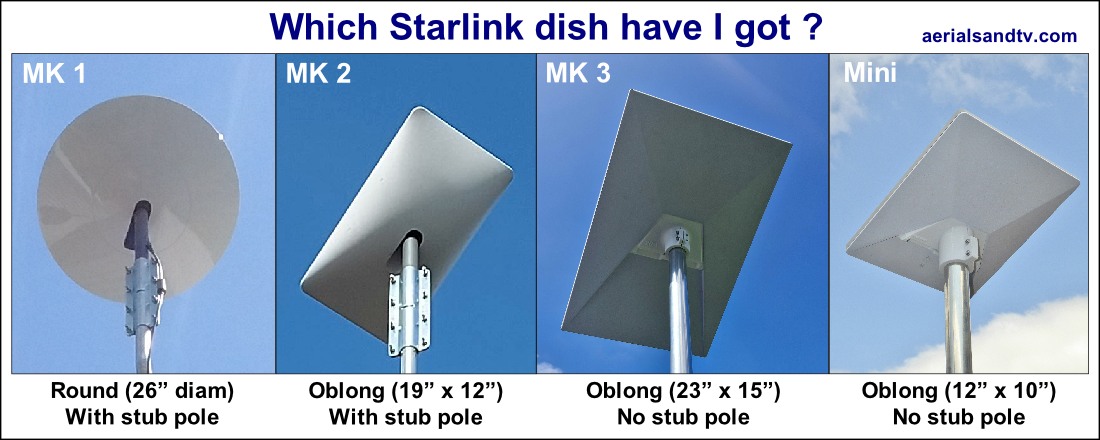

Starlink Mk II ("2nd Generation dish") pole dimensions

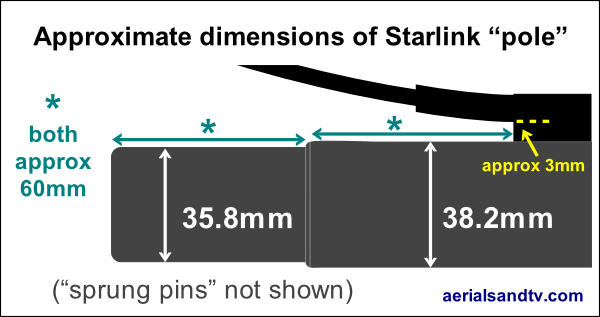

These dimensions are of great relevance if considering alternative methods of installing Starlink on a longer pole without using Starlink's pole adapter (which is "sub optimal" in the design department, to put it mildly, let's just be honest about it), see section below.
As of November 2021 Spacex / Starlink started supplying a smaller "Generation 2" rectangular dish. It is 19" x 12" with a similar mast diameter to the original. It is a significant improvement in design because you now have a choice as to whether the cable should exit above the pole (that it is being installed on) or be routed down inside the pole. In the case of the latter, which in most cases would be the neater option anyway, it actually makes the pole 1.5" pole coupler even more suitable because more of the Starlink's pole (up to about 14.5cm of it) can be inserted into our recommended coupler which results in an even more stable install.
One final point, try to ensure the cable (where it exits the pole at the bottom) cannot move in the wind and wear on the edge of the pole, and/or mitigate that by "deburring" / smoothing off the inside edge of the pole and wrapping tape round the cable at that point. Chaffing of the cable should be less likely at the top of the pole because the cable is sheltered from the wind by the coupler and directed into the middle by the Starlink's own pole, though I still would ensure the inside of the pole is deburred.

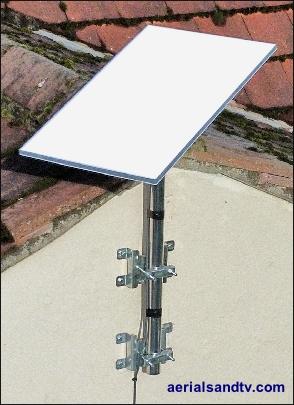

See customer install of a Mk II Starlink dish.
It will be noted that the and "spigot" on the MkII dish is a smaller diameter (approx 34.0mm) than that of the MkI (approx 36.0mm). Since the internal diameter of a 1.5" x 1.6 mm (wall thickness) pole is 34.7mm one can actually sleeve the spigot section straight into the pole. But because that spigot section is only about 2" long I personally would not be relying on just doing that (i.e. without using a pole coupler as well), particularly with an expensive Starlink dish.....
Starlink Business High Performance dish
In late 2022 Starlink bought out a "Business High Performace" dish. Apparently it has a significantly enhanced performance though on this page we are soley concerned with issues affecting its installation.
The dish size has increased from 19" x 12" to 22" x 20", i.e. its surface area has gone up from about 228 squre inches to 440, and that's a whopping 93% increase. Of most concern is the resulting increase in the wind loading which, when combined with its increased weight (from 9lbs to 16lbs), means an even more rugged mounting is to be advised. What this means is any poles we recommend for the standard dish may not necessarily be suitable for the bigger dish, depending on the exposure of the site. We are, however, confident our 4ft x 1.5" poles (either straight or cranked) would be fine. If a longer pole than that is necessary then stay wiring would be advised, particularly in exposed locations. If that is not practical please contact us for advice.
As far as we are aware the pole itself is very similar if not the same (though slightly longer). Also, the plug on the end of the cable is apparently smaller.
Installing a Starlink on a longer pole : Starlink pole adapter
When calculating how long you need your pole to be remember that the Starlink comes on a short pole, approx one foot long, and if using a 1.5" pole coupler (as opposed to clamping it on to the side) all of that length will be in addition to the length of the pole you are fitting it on.

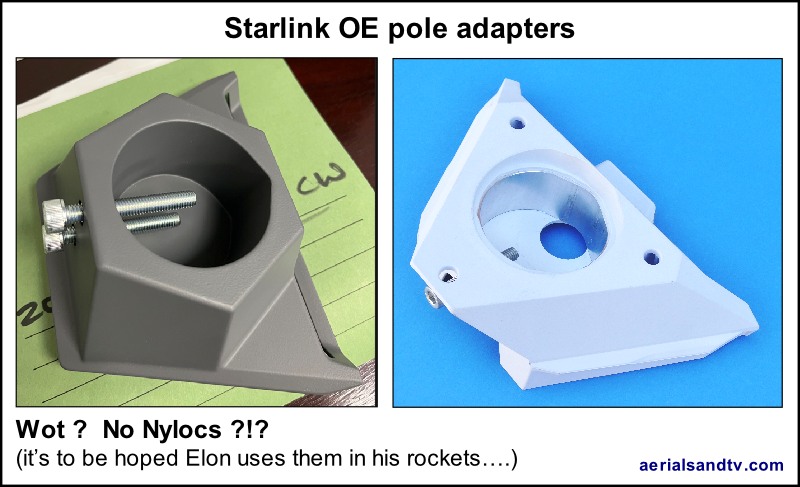

Illustrated is the "genuine" Starlink pole adapter, though some people call it a Starlink pipe adapter (for reasons that escape me). Anyway, I have to say it is a poor piece of design, in fact I'm told it is often criticised on Starlink forum groups, and if that is the case it would not surprise me. The manufacturers appear to be more concerned with it being compact and light (for cheaper carriage) and able to adapt to more than one pole diameter which it does by using bolts to take up the slack. The latter would be a poor idea at the best of times but considering the sets of bolts are only about one and a half inches apart the idea is an absolute joke. I thought all those geeky scientists at Starlink were supposed to be super clever ? At electronics and orbits maybe.....
A superior alternative to the Starlink pole adapter.....
NOTE : When installing an aerial or a satellite dish on pole you would almost always install the item on the pole then install the pole on the bracket, unless the top of the pole was very easily accessible (which it isn't usually).
If I was attaching a Starlink to a pole it would depend on the length of the pole I needed :
For a medium length alloy pole, up to a 5ft unsupported length - i.e. above the top bracket clamp - a 1.5"diameter x 1.6mm wall thickness mast would be perfect*. Even better a 1.5" pole coupler will securely clamp the Starlink onto the end and enable the full length of its supplied pole to be utilised. These couplers can be purchased here (we can ship worldwide but non UK orders always incur a carriage surcharge).
Installing the coupler on a :
Mk I Starlink = clamp the coupler as far up the pole as possible, i.e. over the wider 1.5" section and up to just below the cable exit point.
Mk II version = Route the cable inside the pole then push the Starlink pole as far into the pole coupler as it will go (which is normally about 14.5cm).

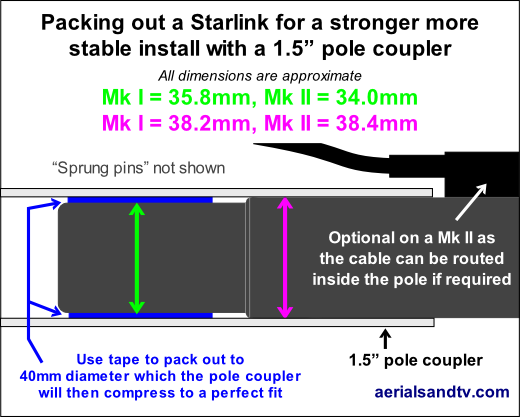

We recommend packing out the thinner end section to further increase the stability of the install though this is of less importance on the Mk II dish because the length of 1.5" (38mm) pole which will fit into the 1.5" pole coupler is 42% longer (increased from 6cm to 8.5cm). We suggest winding a length of self amalgamating tape round it (remove the backing and stretch the tape when using it) so it is about 40mm in diameter and the pole coupler will then compress that to a perfect fit, see graphic. More tape is required for the Mk II as the end section of pole is thinner, though, in either case, it is not strictly speaking necessary to cover the whole of the slimmer end, just the end inch or so should be fine. If you only have insulation tape that is an adequate alternative (wind it tightly) though you may need quite a bit of it !
This install method would certainly be far stronger and more stable than the "genuine" Starlink" pole adapter (which, TBH, is a pants idea). If undertaken correctly winds would have damaged the Starlink way before the coupling would fail [link]
* The following poles would do this job perfectly :
33" x 1.5" x 1.6mm straight pole
6ft x 1.5" x 1.6mm straight pole
4ft x 1.5" x 1.6mm cranked pole
6ft 6in (or 4ft 1in) cranked pole
The cranked poles (or the straight pole if less stand off is required) combined with a pair of low profile brackets makes a particularly neat install, a further advantage (if used with a cranked pole) is that the low profiles even have saddle type clamps.

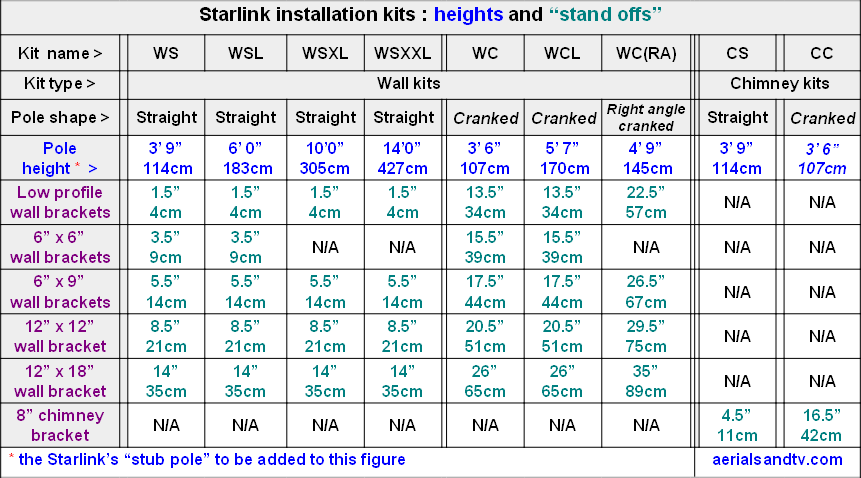

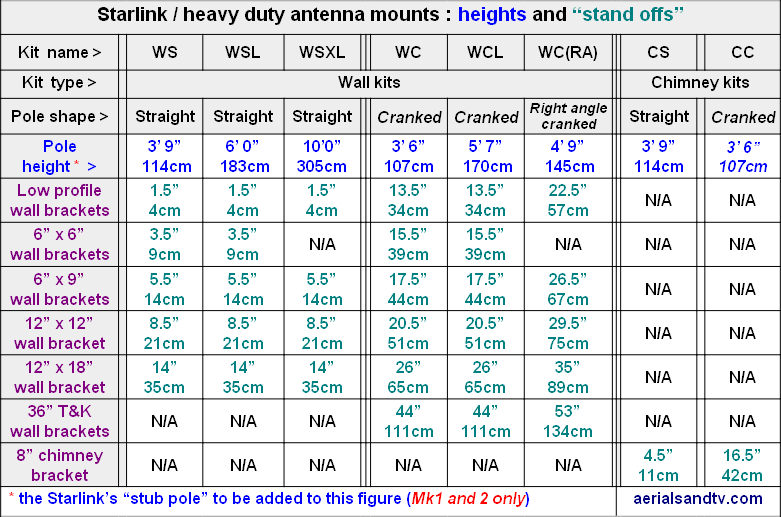

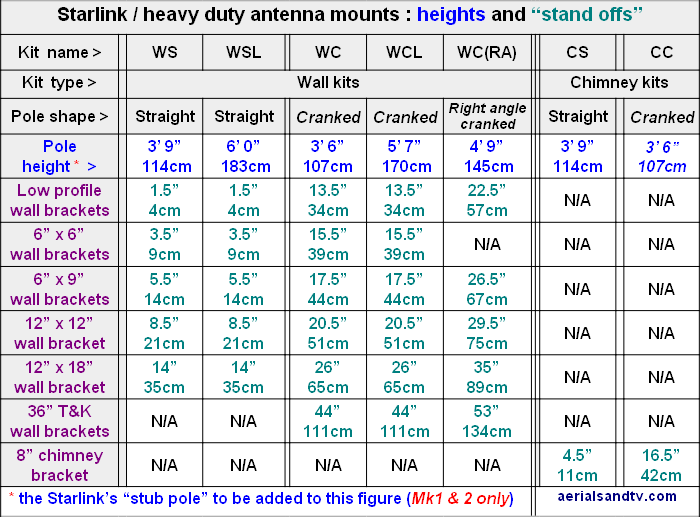

Our Starlink install kits (straight pole kit / cranked pole kit) are based on the 6ft x 1.5in (or 4ft 1in) cranked poles or the 6ft x 1.5in straight pole. Low Profile brackets are available with either kit, as well as brackets with more stand off.
If I was using 1.5" x 1.6mm (wall thickness) steel masting I would go up to around 7ft unsupported length. The problem is that's a non standard size steel pole and the standard wall thickness for 1.5" steel poles is only 1.2mm which is not significantly stronger than a 1.6mm wall alloy pole.
Steel rusts of course so pretty much all steel masting is galvanised, but pre galv (which is by far the most common) has very much thinner protection than hot dip galvanising, in fact they're like chalk and cheese, see pre galv v hot dip galv corrosion resistance. The problem is it is very difficult to get hold of hot dip galv steel poles because they are a lot more expensive to manufacture and it is therefore a specialist product. We have our hot dip galv steel 1.5" cranks specially made for us, hence their relatively high price. Anyway, bolt the Starlink to the 1.5" pole as per the instructions in the paragraph above.
See our Starlink cranked pole install kits.

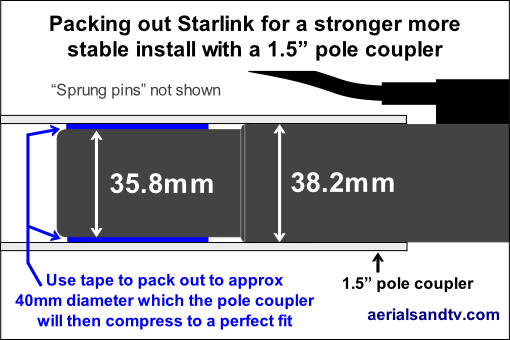

Note : our 1.5" pole coupler will actually clamp down to the 35.8mm diameter of the (thinner) lower section of the MkI Starlink pole and even just using that end 60mm of the pole will still be far stronger than Starlink's pole adapter. However, if it was me, I'd definitely be going further up the pole (to maximise the strength of the install), up to just before the point where the cable exits and then packing the thinner end out to match the diameter of the wider section, see above.
As mentioned above, on the MkII route the cable inside the pole and slide as much of the Starlink pole into the coupler as possible, then clamp up.
If I needed to put the Starlink onto a longer pole I'd either :
1 - Couple together a longer 1.5" diameter pole (using more pole couplers) and support it with guy wires (note only the 3 hook collar fits the 1.5" pole),
2 - I'd be sleeving the pole of the Starlink into an alloy scaffold pole (see adjacent picture), preferably an alloy one like those we sell which are lighter and never corrode. This is possibly the most elegant, strongest and neatest install, see article on this.
The alternative to a pole coupler or a "sleeved install" is a 2x2 pole clamp or a parallel clamp kit (available in galvanised at 2", 2.5", 3", 3.5" or 4", or stainless at 2") as in the adjoining pictures.
It will look a bit agricultural but has the advantage that the Starlink can be clamped to the top of any pole up to 4" in diameter. Normally we would recommend two (rather than just one) 2x2 clamps - and certainly two sets of the parallel clamp kits - to maximise the stability of the install. That said, even just one 2x2 would be stronger that the Starlink "genuine" pole adapter ! [link]
The clamp kits can be used in conjunction with 20x20 alloy to install a Starlink, or any pole, parallel with a box section up to 4" (using the 4" saddles, obviously).
None of our recommended mounts utilise the Starlink pole's "sprung pins" which are simply compressed inwards (out of the way), but that is good thing ! The idea of holding a satellite dish onto its mounting pole using "sprung pins" is unique to Starlink (other than satellite systems for caravans) and that has to tell you something..... In fact, apparently, "SpaceX advises that for maximum security and safety, a tether is recommended to keep the dish attached to the building". I was incredulous when I read that, I have never heard that advice for any aerial or satellite, ever. Have they really so little confidence in how sturdy their product is ? ! ?
In fact, a comment from one of our American customers is, I feel, apposite : I can’t believe Americans would spend $550 for a Starlink system, and then trust some little cheap plastic “peg” to hold the dish on the pole mount!!
So, basically, if it was me, I would not be relying on the "sprung pins" to keep your Starlink from, err, flying off.
Which pole and bracket(s) should I use for my Starlink installation ?
Fairly early on you need to decide the length of the pole (upon which you will install your Starlink) required to give you the necessary 100 degree clearance. Remember the Starlink's stub pole will be in addition to that height. You also need to ascertain how far out from the wall the pole needs to be in order to clear any fascia, this is the "stand off". The latter should include a 2 inch gap (or larger) to avoid any chance of the pole banging against the fascia and to facilitate any future maintenance of the latter. We recommend you get up there and check exactly what stand off you need before ordering your bracket !
Will the install be on the wall or the chimney (as different brackets should be used for each) ?
Bear in mind that the Starlink, like any satellite dish, should be mounted as rigidly as possible, to minimise any movement caused by the wind. Thus the pole's brackets should be of the heavy duty type and/or spaced appropriately, plus the pole should be of sufficient diameter and wall thickness to minimise any flexing, see article on "satellite poles".
Remember ! : When using pairs of brackets the farther apart they are mounted the stronger the install will be.
An alternative to brackets with a large stand off is, of course, the cranked pole, and they can look neater.
However, in order to minimise movement of the Starlink installation, we would only recommend three cranked poles for it (though the 1.25" diameter poles do not easily fit the 1.5" pole coupler) :
3ft x 1.25"
4ft x 1.25"
4ft x 1.5"
6ft x 1.5"
Plus the Supercrank or 10ft crank if cut down, maybe by 2ft?
If using a Supercrank pole or a Right Angle crank consideration should be given to using saddles with the V bolts due to the higher twisting forces that would be imposed on the install (not required with low profiles brackets as they have saddle type clamps).
Other useful articles for installing Starlink :
1 - Which bracket for which pole length ?.
2 - All about wall anchors.
3 - Installing brackets on metal clad buildings.
Mounting Starlink onto a flat roof is easy because our heavy duty flat roof mounting kit's pole just happens to be the right internal diameter (40mm) to sleeve a Starlink pole straight into ! [link]
Size of hole needed for Starlink's ethernet plug
Generally, when you fit an aerial or satellite dish, you would only put the plug on after having routed the cable through the wall, thus the hole doesn't have to be that big (10mm would suffice). However, with Starlink, the plug is already on the "power over ethernet" (POE) cable and therefore you have to drill a hole of sufficient size for that to pass through. In fact the hole wants to be a bit bigger so as to ensure it gets through both walls (of a standard cavity wall) relatively easily with the minimum chance of damage. We would recommend a hole at least 22mm in diameter, even bigger will make it easier to get the plug through but will obviously, err, leave a bigger hole. Very few people have got a 22mm masonry drill and many haven't even got a drill capable of driving a bit that size. I can't say I have tried it for a hole of this size (though I have done so for larger holes) but it would be possible to make a hole of that diameter in a standard cavity brick wall with smaller drill bits by drilling multiple holes in a circular pattern and then breaking out the masonry. However you would need a bit long enough to go through both skins of brick to ensure you are making the holes exactly opposite each other ! I would suggest using the long bit (usually a 10mm) for a centre hole then using smaller bits (e.g. 7mm) to drill holes in a circle round it. Pull the cable through the hole by feeding a welding rod (or similar) through it and taping the Starlink cable to that, then pull it through as gently as possible. Whatever the size of the hole don't forget to install a "drip loop" then, once the cable has been passed through, we recommend filling it with silicone to keep out the weather.
The size of the ethernet plug is also of relevance if sleeving a 1.5" pole (or the Starlink itself) into a scaffold pole : the securing bolt should be offset sufficiently to allow the plug to pass it.
The Starlink cable is about 100ft long
See more tips when running cables. [Link]
Starlink and lightning risk.
The fact is that the risk of lightning striking your house really is quite remote. More to the point, if your house does actually get struck by lightning it probably won't have been due to the Starlink being there, and the chances are that half your roof would get blown off anyway, so under those circumstances whether your Starlink has been damaged really would be the least of your worries…..
I would not have thought the lightning threat with Starlink is much different to that with TV aerials, so see lightning risk with TV aerials.
