XB16A Aerial

£63.00

The XB16A is the correct aerial for A group transmitters for sites in the poorest signal areas.

Description

In the weakest signal areas (on A group transmitters, obviously ! ) we would recommend the XB16A. These are X Beam type antennas but they are still of reasonably strong construction (unlike some of that type) and all come with a cradle & tilting clamp (for poles up to 2in).
The XB16s are the highest gain grouped aerials we have tested.

See Aerial Reports for the XB16A

If fitting an XB16 on a 10ft pole we strongly advise using one of 2” diameter.

Examples of the major transmitters which can utilise an XB16A.

The test performance and the dimensions and wind loading of the aerial  can be found in the tables below.

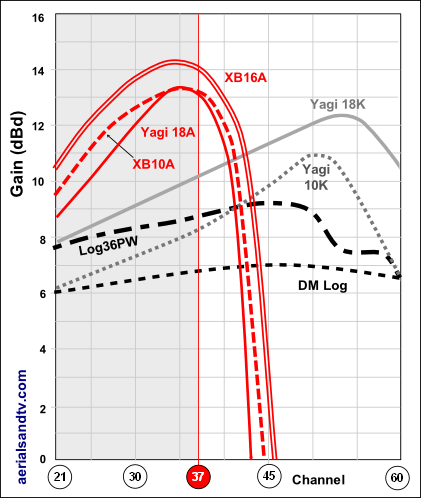

ATV stock A group aerials 500H L5 PNGAlso see other A group curves and relevant comparisons.

Yagi18A plus other aerial dimensions and wind load figures 547W L20

Additional information

Suitability

For poles up to 2in.

Accessories

Comes supplied with cradle.
