WSXXL – Starlink pole install kit for a wall (14ft straight mast)

Our Starlink wall install kits comprise pretty much all you need to install a Starlink (though it does not include the Starlink itself, obviously….) :
– 1.5″ / 38.2mm (Nyloc) pole coupler.
– 4ft x 1.5″ extra heavy duty straight pole.
– 2″ to 1.5″ heavy duty pole coupler
– 10ft extra heavy duty alloy “scaffold” pole
– Hot dip galvanised wall brackets : a pair of Low Profile or 6″x9″ or 12″x12″ or 12″x18″.
– All bolts and nuts are stainless, all nuts are Nyloc.
– 1m of self amalgamating tape.
Stainless wall bolts c/w universal plugs.
– Box of 100 black clips.
– Screw eye.

This 14ft kit can be supplied with a one piece 14ft “alloy “scaffold” pole in place of the two poles and one of the couplers. The kit price is the same but the freight carriage (for a 10ft+ item) is more expensive. Please phone for details.
Due to the huge differences in costs for the delivery of long items this product is only available by phone (0114 2854 254).

Kit prices (standoffs) :
1.5″ = £151.50
5.5″ = £157.00
8.5″ = £176.00
14″ = £189.50

Unfortunately we cannot ship this kit out of the UK


Typical ATV Starlink installation kits in situ.
Ideally one should aim for minimum movement of the Starlink dish.

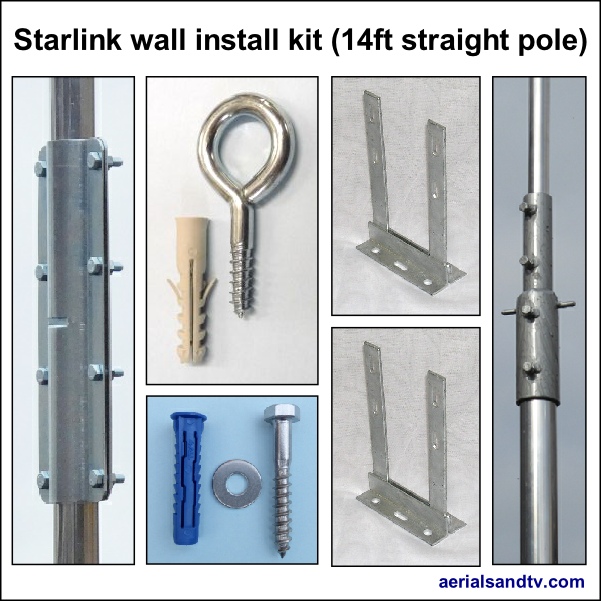

Starlink wall install kit with straight pole (does not include the Starlink, obviously….)

When using pairs of brackets the farther apart they are mounted the stronger the install will be.

When calculating how long you need your pole to be remember that the Starlink comes on a short pole, approx one foot long, and if using a 1.5″ pole coupler (as opposed to clamping it on to the side) all of that length will be in addition to the length of the pole you are fitting it on.

The kit comprises :

– 1.5″ (38.2mm) pole coupler which fits the Starlink mounting pole. Zinc plated (but decent quality) and supplied with stainless bolts and stainless Nyloc nuts. See here for fitting instructions.
The pole coupler can be bought separately here.

Extra heavy duty 4ft x 1.5 inch x 1.6mm (16G) straight alloy pole to fit at the top.

– 2″ to 1.5″ heavy duty pole coupler. Galavnised finish with stainless bolts.
The pole coupler can be bought separately here.

Extra heavy duty 10ft x 2″ x 4.0mm heavy duty alloy “scaffold” pole to fit at the bottom.

– Pair of Low Profile brackets (hot dip galv pressings – finish may vary – and Nyloc stainless bolts).
– a pair of welded hot dip galvanised wall brackets – finish may vary (either 6″x9″, or 12x”12″ or 12″x18″) c/w Nyloc stainless steel V bolts

– Eight stainless steel (A2) wall bolts and washers with universal plugs.

– 1m of self amalgamating tape (remove backing and stretch when using ! )

– Box of 100 black 7mm clips

– Screw eye (see safe use of a ladder)

This product must be sent out freight and therefore the order MUST be phoned through.
Unfortunately we cannot ship this kit out of the UK, though (just) the coupler can be shipped abroad (at a carriage surcharge).

NOTE : When installing an aerial or a satellite dish on pole you would almost always install the item on the pole then install the pole on the bracket, unless the top of the pole was very easily accessible (which it isn’t usually).

Customers’ Starlink install reports.

1.5 inch pole coupler - fits Starlink 300W L5

Wall brackets (standard) welded and hot dip galvanised 466W L5

12inX12in and 12inX18in Starlink pole wall brackets 714W L5

A pair of brackets are supplied (6×9 or 12×12 or 12×18). They are either wall brackets (as above, with stainless V bolts) or low profile brackets (as below, hot dip galvanised & stainless steel bolts)

Low profile wall brackets 600W L5

Low Profile Bracket (pressing) dimensions 500W L5.jpg

2.0" stainless V bolt

The stainless steel bolts supplied with the Starlink kits come with Nyloc nuts.

Nyloc nuts 578W L5

Universal plug 50mm 400W L5

Product appearance may vary
The screws supplied in our Starlink install kits are coach screws, as below.

50mm stainless wall screws with universal plugs 470W L5

Correct size clips hold themselves on to the cable 250W L5 So you don’t have to hold the clip on the cable and risk Derrick the Decider (the II) hitting your fingers.

75mm x 18mm screw eye cw M10 plug 326W
