Description

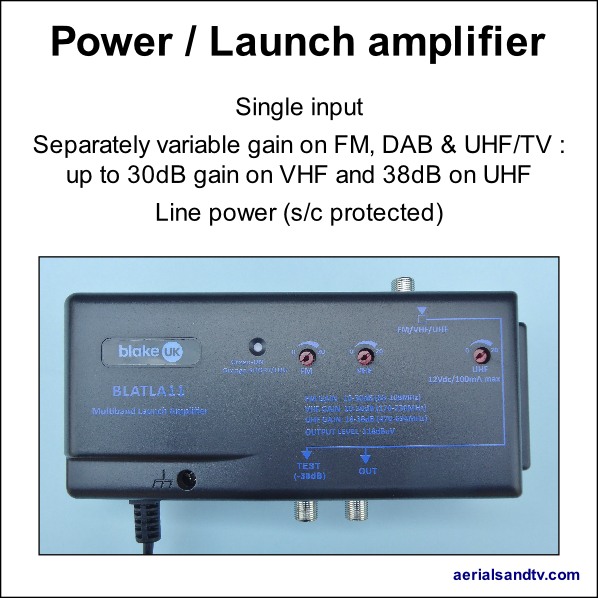

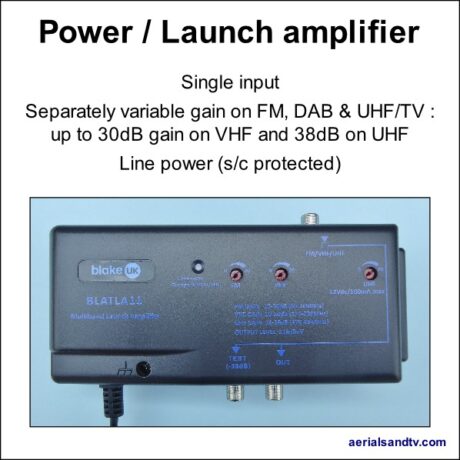

Power / launch amp. See Launch Amps.
Amplifier specifications :
Gain = 18 to 38dB on VHF and 10 to 30dB on VHF
Max input level = 85 dBμV
Max output = 118 dBμV
Monitor point = -30dB
Noise (typical) = UHF 5.0dB, VHF 2.5dB
Line power (for a M/H amp) = 12V 100ma (infinite short circuit protection)
Power consumption = 240V x 4.5W
Inputs = One for :
UHF (470 to 694 MHz)
DAB (170 to 230 MHz)
FM (88 to 105 MHz)
Designed for use in conjunction with this Triplexer (if multiple signal inputs are required)
Earth bonding terminal.
2 year warranty on this product.
NOTE : This amp (in fact no amp) is not going to turn a poor signal signal into a good one just because its high gain. It’s meant for larger distribution systems or pre-amplifying signals before a long cable run.
Also see 1 way mains amp.
These amps are fully screened :
