Wall plate (screened) : F connector + CoAx


Screened CoAx + F connector wall plate / surface plate.

Carriage charges. Non UK orders almost always incur a carriage surcharge.

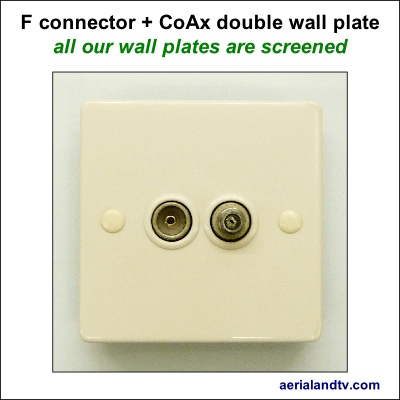

CoAx plus F connector socket surface plate in off white.
This is a two in two out plate, i.e. it is NOT diplexed (see diplexed surface plate).

Non-isolated so as to pass voltage to either a satellite LNB or a mast head amp.

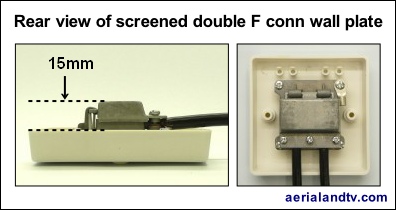

As can be seen from the picture (above right) it is screened. The screening can may require the use of a deeper pattress box or spacer plate (sold here).
See article on surface plates.

Occasionally (very occasionally) an alternative plate of equivalent quality may be substituted.

F connector plus CoAx double wall plate screened rear view 396W L5

Male or female coax and F connectors 600W L5
